Showing all 12 results

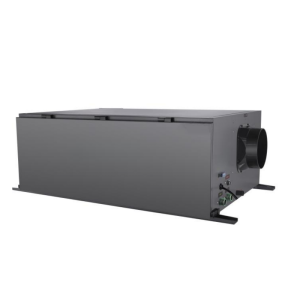

Ceiling Ducted Dehumidifier CD Series is designed to keep the treated room dry without loss of energy, as the dry air is re-circulated and contained within the room. It is also equipped with 5 stages air purification system( G4 + F7 + H13 + UV light + Anion generator) to ensure the air is purified and cleaned.
7℃ chilled water flows into the cooling coils and makes the coil surface cold. The fan inside the unit draws ambient warm and humid air through the coils, thus the air is cooled below the dew point: the temperature is lowered, and the moisture is removed.
The water condenses on the coil surface and drips into the condensate pan directly.
Through this heat exchange process, the return water inside the coil will increase to 12℃ and return to the water tank. The off-coil air will be around 13℃, with 95% relative humidity, and with a moisture content of 8g/kg. The unit keeps working to keep the space with the constant moisture content.
Ventilating Ceiling Ducted Dehumidifier CD-F Series introduces partial fresh air from outdoors and mixes with the indoor return air. The mixed air will then pass through the first stage (G4 efficiency), and second stage (F7 efficiency) air filtration to remove airborne particles and contaminants. The partially filtered air will then enter into the direct expansion dehumidification system to remove the excess moisture. The excess moisture in the air will be condensate and turn into water. The water will then be collected at a drain pan, where it will be pushed out with the help of positive air pressure from the processed air. The dried air will then pass through the final stage of the HEPA filter to remove micron size particles and airborne bacteria. The final output of the processed air will be dried and cleaned.
This system is suitable for applications that require the introduction of fresh air into the room and also that require to create of positive air pressure. This system can also be the replacement of the traditional ventilation fan that is used to keep the room filled with fresh air.
With CD-F Series, the supplied of fresh air would help to prevent issues that may affect the well-being of occupants due to lack of oxygen. Besides, it also help to reduce the growth of airborne bacteria with the built-in air purification, ensuring continuous supply of fresh, clean and dry air is supplied into the room.
This series combines HRV and dehumidifier into one unit.
It can work as an HRV and a dehumidifier or as a whole system in different seasons.
HPD series is specially designed for hotels, clubs, training, and other pools, on the one hand, to create a constant temperature of the pool water to meet the temperature requirements of people’s daily training, recreation, etc., on the other hand, to the indoor swimming pool to create a high specification of a comfortable environment for the indoor swimming pool, the humidity of the air, the air temperature, ventilation, exhaust and so on to ensure a comfortable system. Not only that, such as laboratories, document storage rooms, precision production workshops, equipment rooms, libraries, and other places that require the control of indoor humidity can be used in our constant temperature and dehumidification heat pump series products.
This series of dehumidifying units takes high efficiency and energy saving as the highest pursuit; takes stability and safety as the most basic principle; designs high-performance products in line with the current energy saving and environmental protection” as the new characteristic for users; this series of products are reasonably designed with compact structure; and has high energy efficiency, low noise, large air volume, safe operation, high reliability, and excellent matching performance of high-temperature place environment and waste heat recovery function.

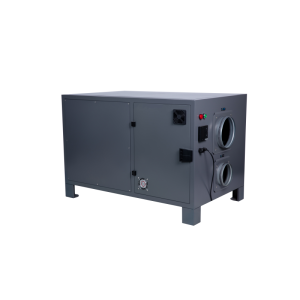

RD series desiccant dehumidifiers work based on adsorption theory.
The moisture in the process air is adsorbed in the dehumidification sector of the desiccant rotor. As the desiccant adsorbs moisture, it is slowly rotated into the reactivation sector.
During reactivation, hot air passes through the desiccant rotor and removes moisture from the rotor. After reactivation, the rotor rotates back into the process air stream to begin adsorption again. Adsorption and reactivation take place continuously and simultaneously. Positive sealing between the two airstreams prevents the mixing of the two streams.
This series can do cooling, heating, dehumidification, and humidification in one unit.
This series can do cooling, heating, dehumidification, and humidification in one unit.

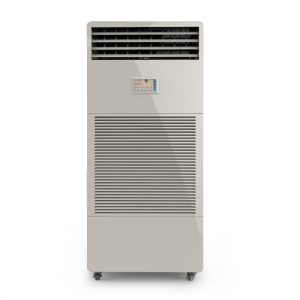

WEH series evaporation wet film humidification is an isoenthalpy method. Evaporation of water is induced by absorption of energy from the ambient. The dry-ball temperature in the air drops while the absolute humidity increases, but the total enthalpy in the air is held constant. Wet film humidifier has low cost, clean, and will not cause condensation. Water is circulated and evenly distributed to the wet curtain. Hot and dry air is blown in by a working fan to the wet curtain, then cool and wet air is blown out.
