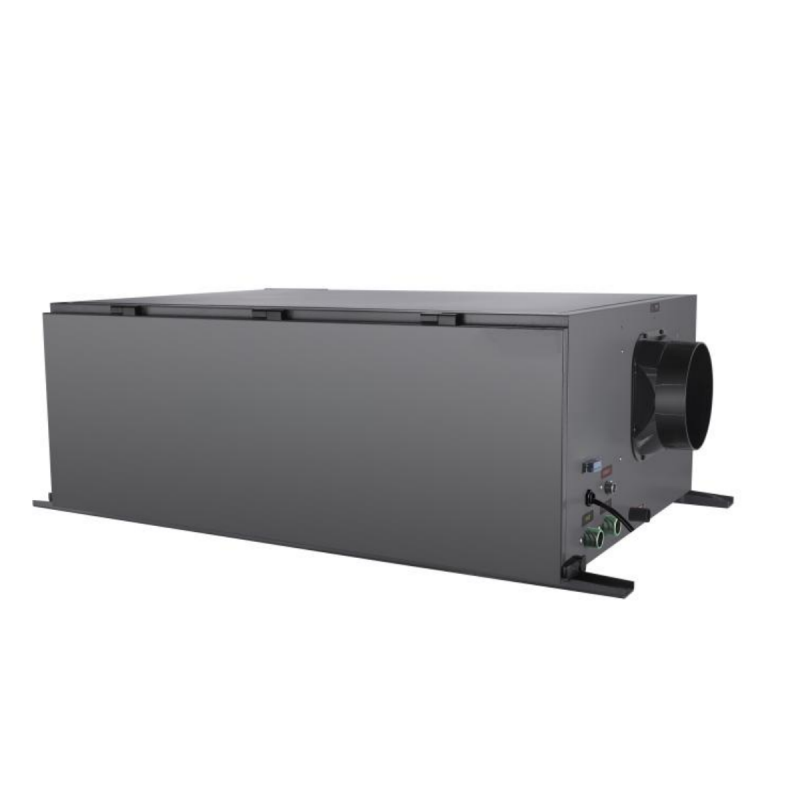

CD-CW Series
7℃ chilled water flows into the cooling coils and makes the coil surface cold. The fan inside the unit draws ambient warm and humid air through the coils, thus the air is cooled below the dew point: the temperature is lowered, and the moisture is removed.
The water condenses on the coil surface and drips into the condensate pan directly.
Through this heat exchange process, the return water inside the coil will increase to 12℃ and return to the water tank. The off-coil air will be around 13℃, with 95% relative humidity, and with a moisture content of 8g/kg. The unit keeps working to keep the space with the constant moisture content.
Features of Chilled Water Ceiling Ducted Dehumidifier CD-CW Series
* Intelligent control, primary-efficiency filtration G4 + medium-efficiency F7 + high-efficiency H13, ensures clean indoor air.
* The chilled water coil is made of high-efficiency inner thread copper tubes with blue hydrophilic-coated aluminum fins, and the condensate pan is made of SUS304 stainless steel.
* Built-in DC fan，External static pressure > 120PA，Can be linked with exhaust fan.
* 7℃ chilled water coil,supply air temp 12-14℃, non-adjustable.
* Standard 485 protocol, open protocol with intelligent control.
* Optional electric heater to heat the supply air to ensure moisture content is less than 8g/ Kg & temperature @16-22℃.
* Using low noise and high static pressure DC fan to adjust or switch air rate freely.
* Optional PTC/wetfilm humidification section to add moisture to the air during the dry season.
Application of Chilled Water Ceiling Ducted Dehumidifier CD-CW Series
* Residential building
* Hospital and lab
* Offices and shops
* Kindergarten and nursery
* Greenhouse
* Pool and spa
* Schools
* Hotels
* Villa etc.

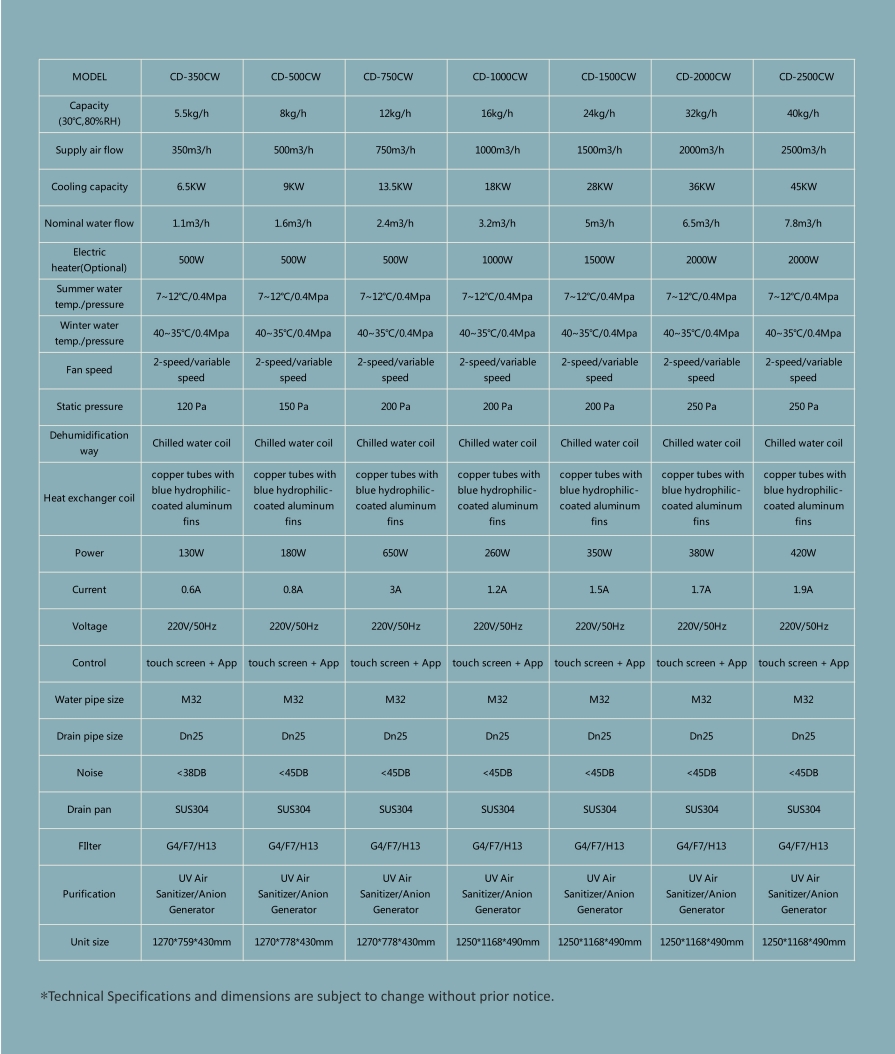

Technical Parameters of Chilled Water Ceiling Ducted Dehumidifier CD-CW Series
